6IST Double Twist Wrapping Machine

Double Twist

Overview

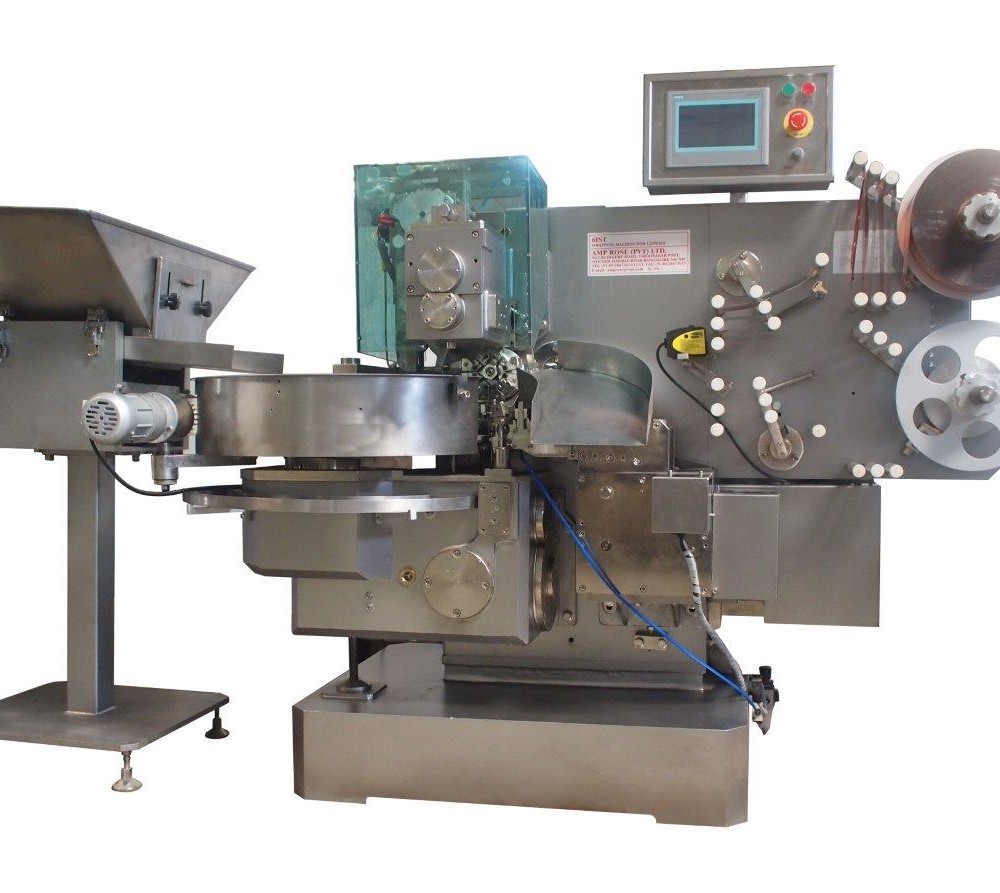

The 6IST single and double machine is designed to wrap a wide variety of different types and shapes of pre-formed sweets including solid and centre-filled high boiled lines, in double twist wrapping style.

Technical Data

Output

Up to 500 p/m

Size Range

Length: 12 – 34mm
Width: 12 – 34mm
Thickness: 6 – 20mm
Diameter: 14 – 29mm

N.N. Products outside this size range will be considered.

Description
Enquiry Form

Wrapping Material
Twist wrapping grades of cellulose film, waxed paper, PVC or cast polypropylene are suitable as an outer wrapper. The inner wrap, if required, should be tissue backed aluminium foil.

Machine Speed

An infinitely variable drive up to 500 cycles per minute is
fitted. Actual outputs under production conditions will
depend on the size and type of product.

Features and Benefits

– Minimal product/wrapper wastage.
– Ability to wrap all types of product and shapes.
– Fast/simple size changes.
– Simple reliable operations
– One operator for multiple machines.
– Reel run out/wrapper breakage control – standard.
– Paper ruffle switch – standard.
– No product no paper control – standard.
– AC variable speed drive – standard.
– Full canopy style guard – optional extra.
– Hot air blower – optional extra.
– Vibratory feeder – optional extra.
